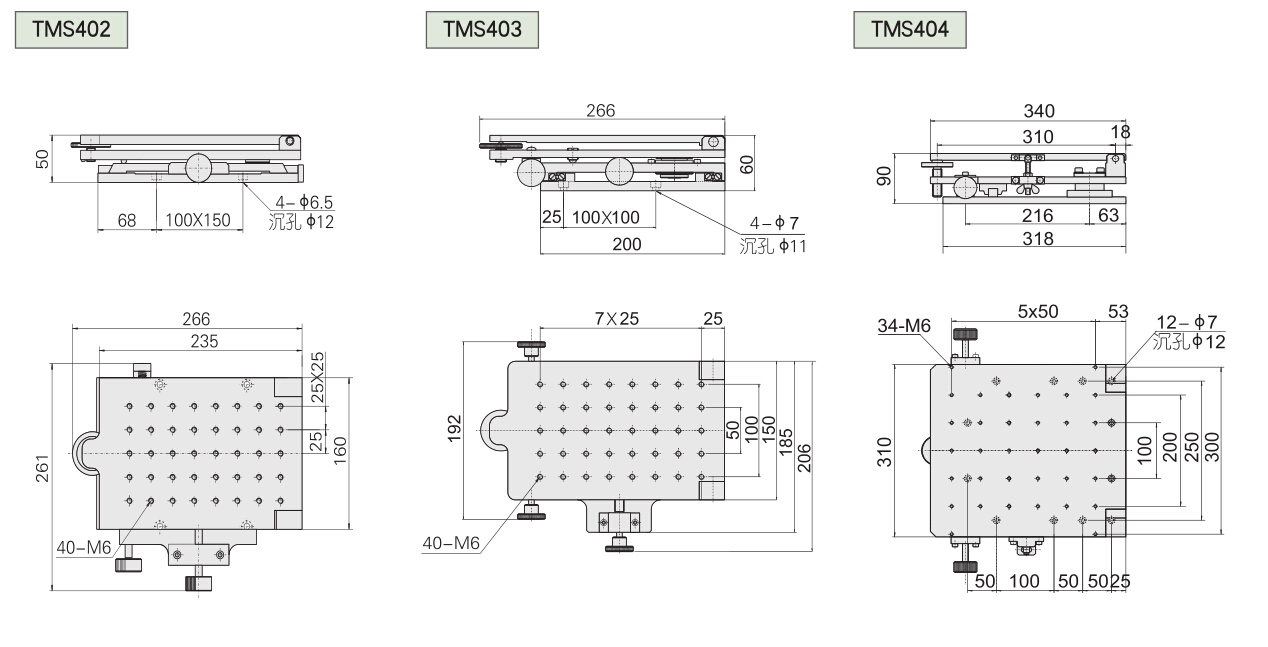

TMS400 series multi-axis positioning stages


		1.The stages allow for 3-axis adjustments.

		2.Actuated with dovetail slide guides.

		3.Driven withfine teeth screw rods.

		4.Resetspringeliminates return backlash.

		5.TMS400 series stages can
be combined with VTS seriesstages to provide four-axisadjustment
capability.

- description
 - parameters

|
					 Model  |

					 TMS402  |

					 TMS403  |

					 TMS404  |

|
					 Travel(mm)  |

					 Ty:±10  |

					 -  |
			|
|
					 Adjusting range of translation  |

					 θz:±2.5°  |

					 θz:±10°  |

					 θz:±6°  |

|
					 Adjusting range of pitch  |

					 θy:3°  |

					 θy:±3°  |
			|
|
					 Loading capacity  |

					 19  |

					 40  |

					 80  |

|
					 Weight(kg)  |

					 5.9  |

					 6.5  |

					 15  |
