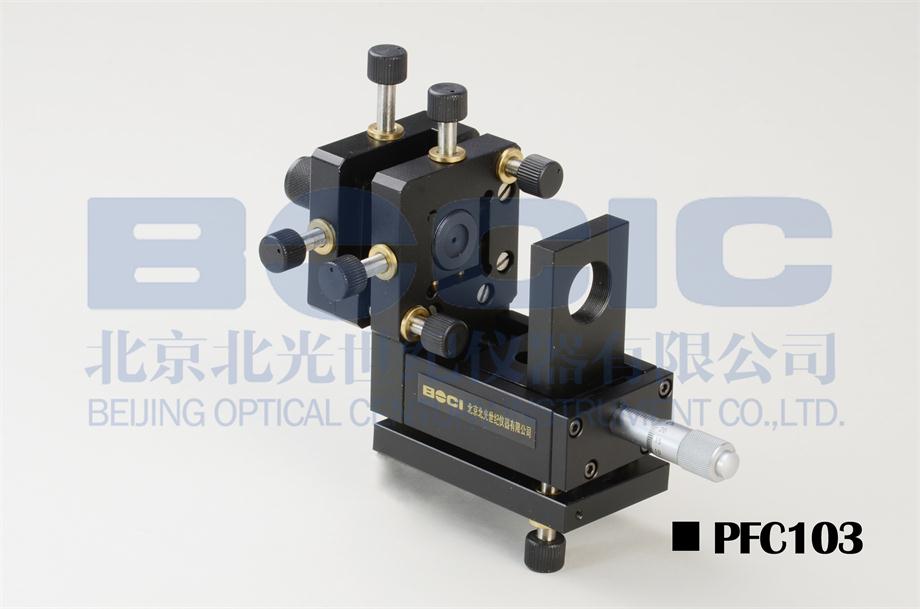

PFC103 precision fiber coupler
1. Increase a micro lens mount on the basis of PFC101 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber
2. The guide rail adopts precision linear ball, stable movement, high precision
3. Driving by micrometer head, Continuously measure the distance between the objective and pinhole
4. Biaxial inclination adjustment function
5. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.
6. If increase pinhole ,Can change to the spatial filter
- description
- parameters
|
Model |
PFC103 |
|
|
Applied diameter（mm） |
≤φ6.35 |
|
|
Adjusting range of objective（mm） |
Tx |
13 |
|
Adjusting range of translation（mm） |
Tx |
6 |
|
Ty |
±2 |
|
|
Tz |
±2 |
|
|
Adjusting rang of fiber tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Adjusting range of tilt |
±4° |
|
|
Weight（kg） |
0.45 |
|
