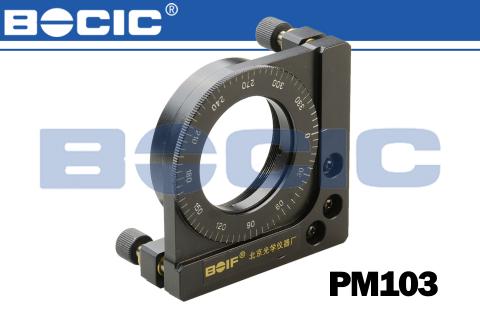

PM100 series polarizer holders
1. It can clamping polarized lenses , locking by pressure ring
2. Rotation adjustment by using precision axes
3. Provides two dimensional adjustment of tilt
4. M6×0.25 fine thread screw adjustment
5. Graduations with 360 ° around the unit
6. Disc spring reset
- description
- parameters
|
Model |
PM101 |
PM103 |
PM104 |
|
|
Applied diameter A（mm） |
Φ25/Φ25.4 |
Φ50/Φ50.8 |
Φ12.7 |
|
|
B |
Φ23 |
Φ48 |
Φ11 |
|
|
C |
36.5 |
52 |
36.5 |
|
|
L |
58 |
87 |
58 |
|
|
Adjusting rang of tilt |
θy |
±5° |
||
|
θz |
±5° |
|||
|
Adjusting range of rotation |
θx |
360° |
||
|
Minimum reading |
2° |
5° |
2° |
|
|
Weight（kg） |
0.15 |
0.3 |
0.17 |
|
