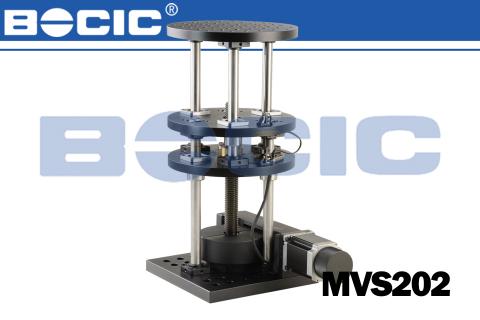

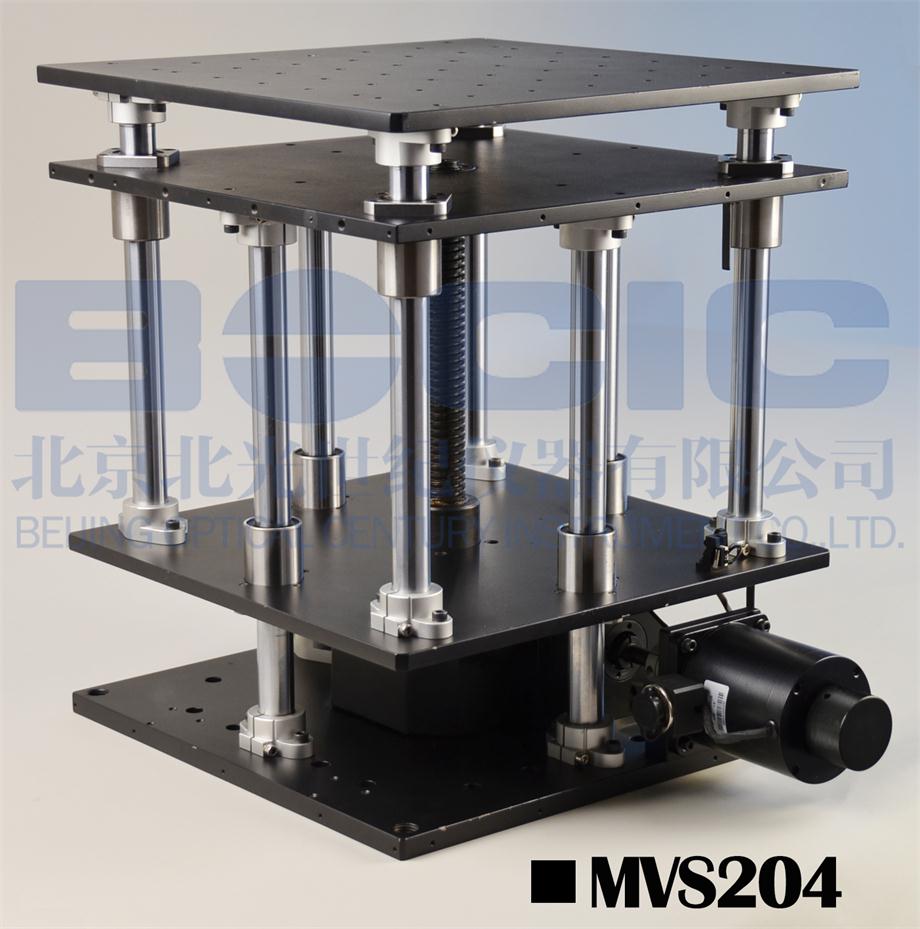

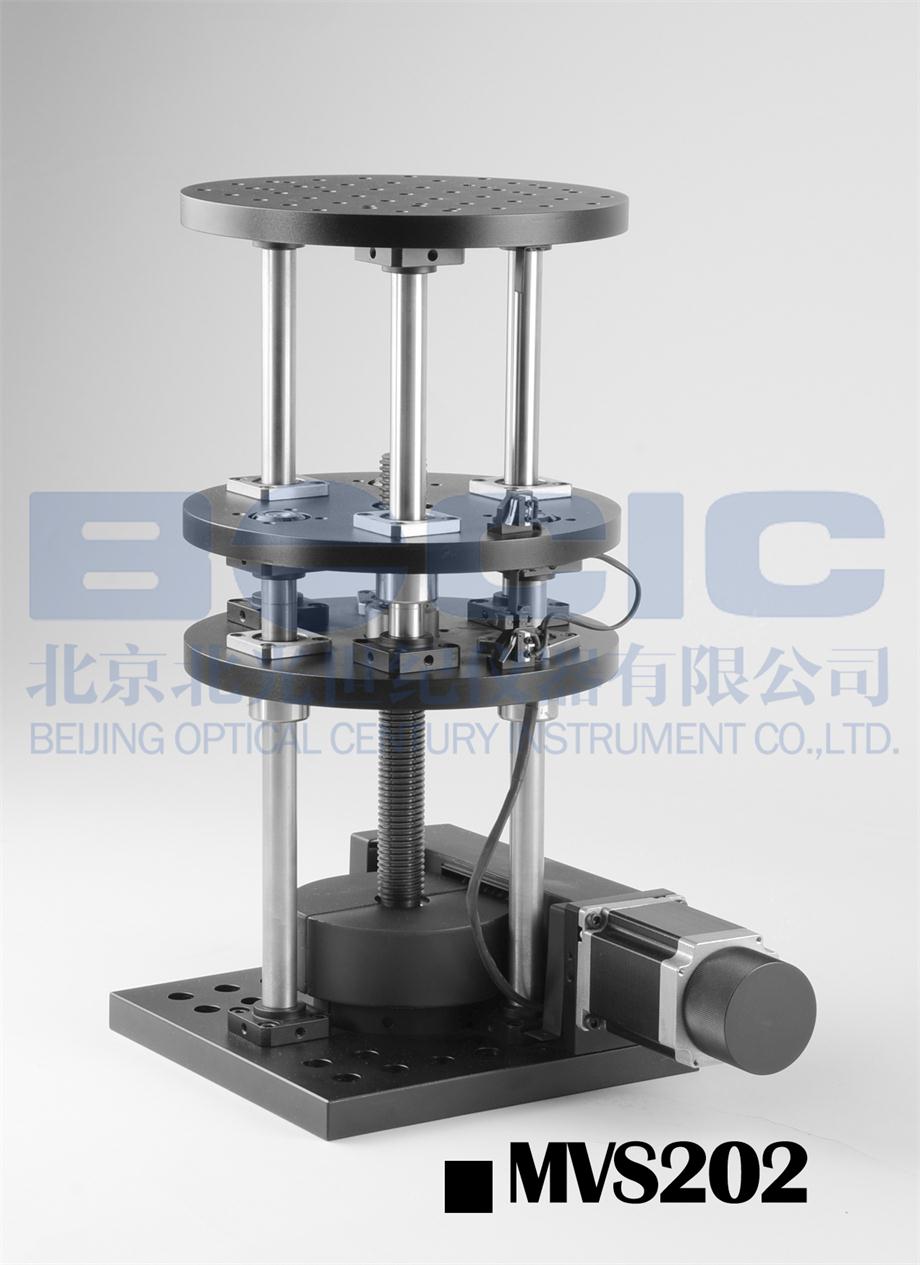

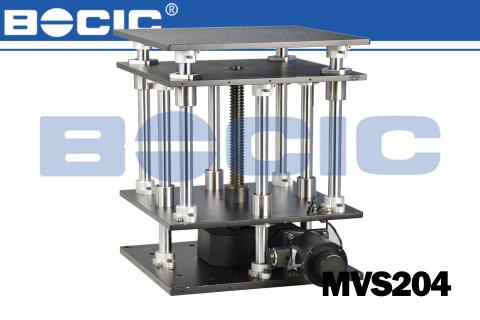

MVS200 series motorized vertical translation stages
1. The transmission adopts worm and worm
gear structures with linear bearing guide rail.
2.High precision, large bearing capacity

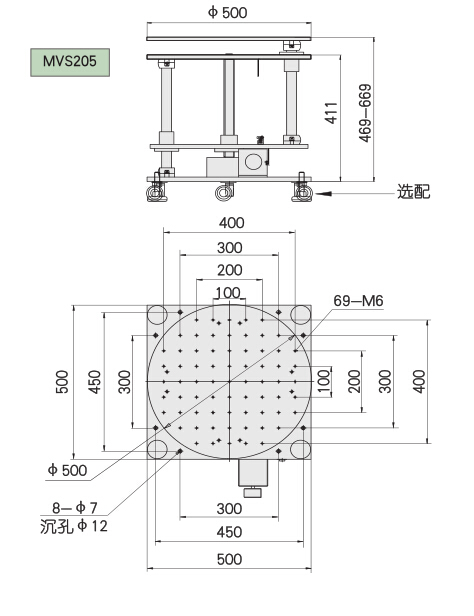

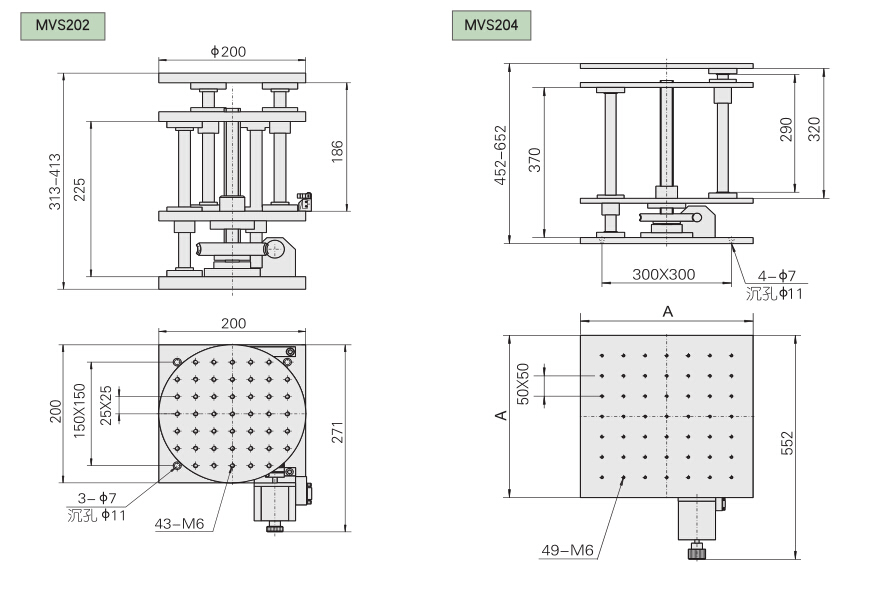

- description
- parameters
|
Model |
MVS202 |
MVS204 |
MVS205 |
|
Travel（mm） |
100 |
200 |
200 |
|
Table size (mm） |
Φ200 |
400×400 |
Φ500 |
|
Gear ratio |
45：1 |
60：1 |
60：1 |
|
Screw pitch |
3 |
6 |
6 |
|
Resolution（mm） |
0.001 |
0.001 |
0.001 |
|
Resetting positioning accuracy (mm） |
0.005 |
0.005 |
0.005 |
|
Maximum speed (mm/s) |
0.20 |
0.50 |
0.50 |
|
Stepper motor（1.8°） |
56 stepper motor |
86 stepper motor |
|
|
Loading capacity(kg) |
40 |
80 |
200 |
|
Weight（kg） |
15 |
80 |
120 |
